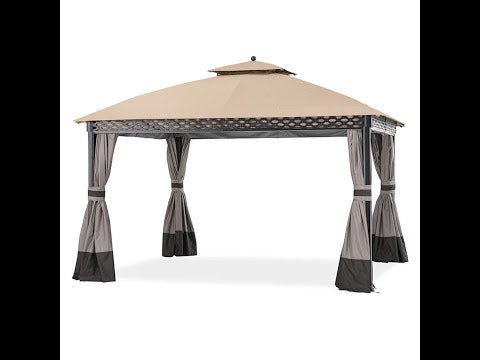

Replacement Canopy for Pinehurst Gazebo

Green Spruce / Riplock 350

$195.99 USD

Skip to product information

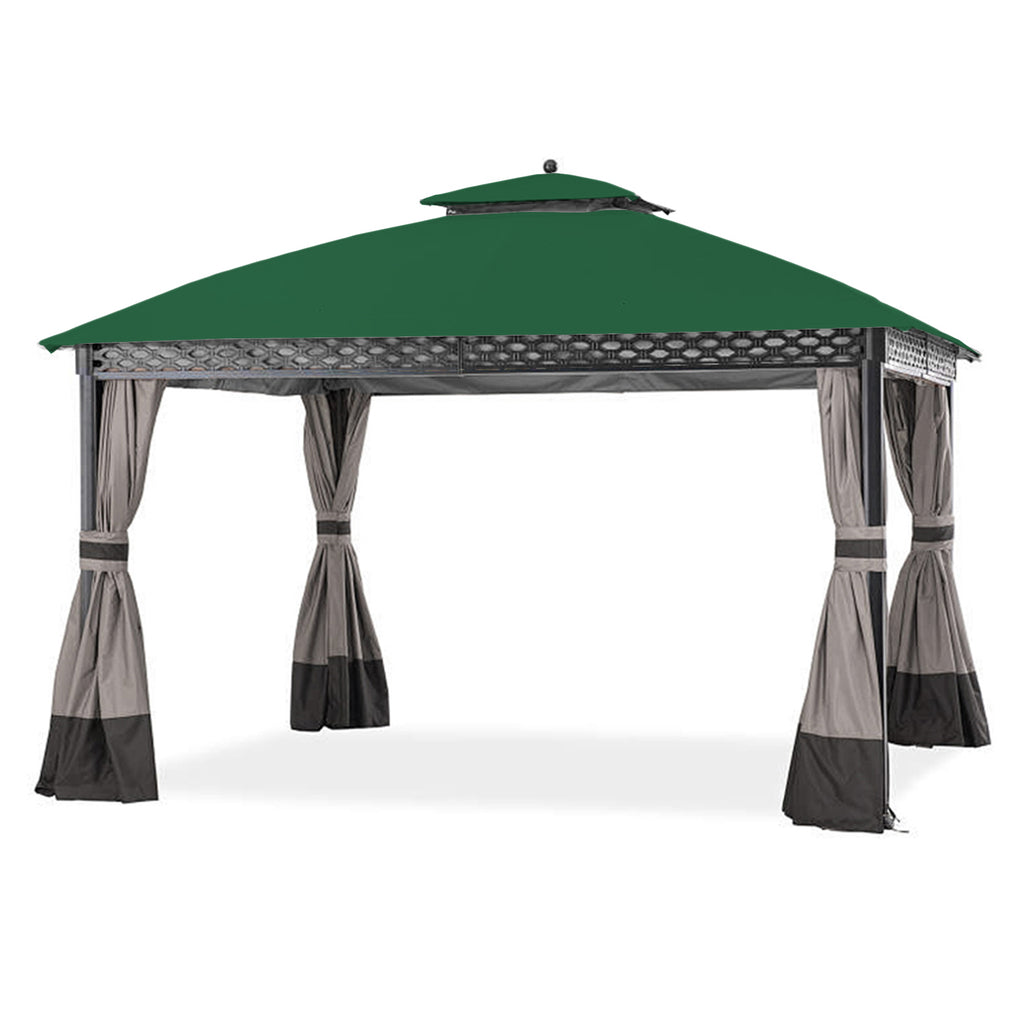

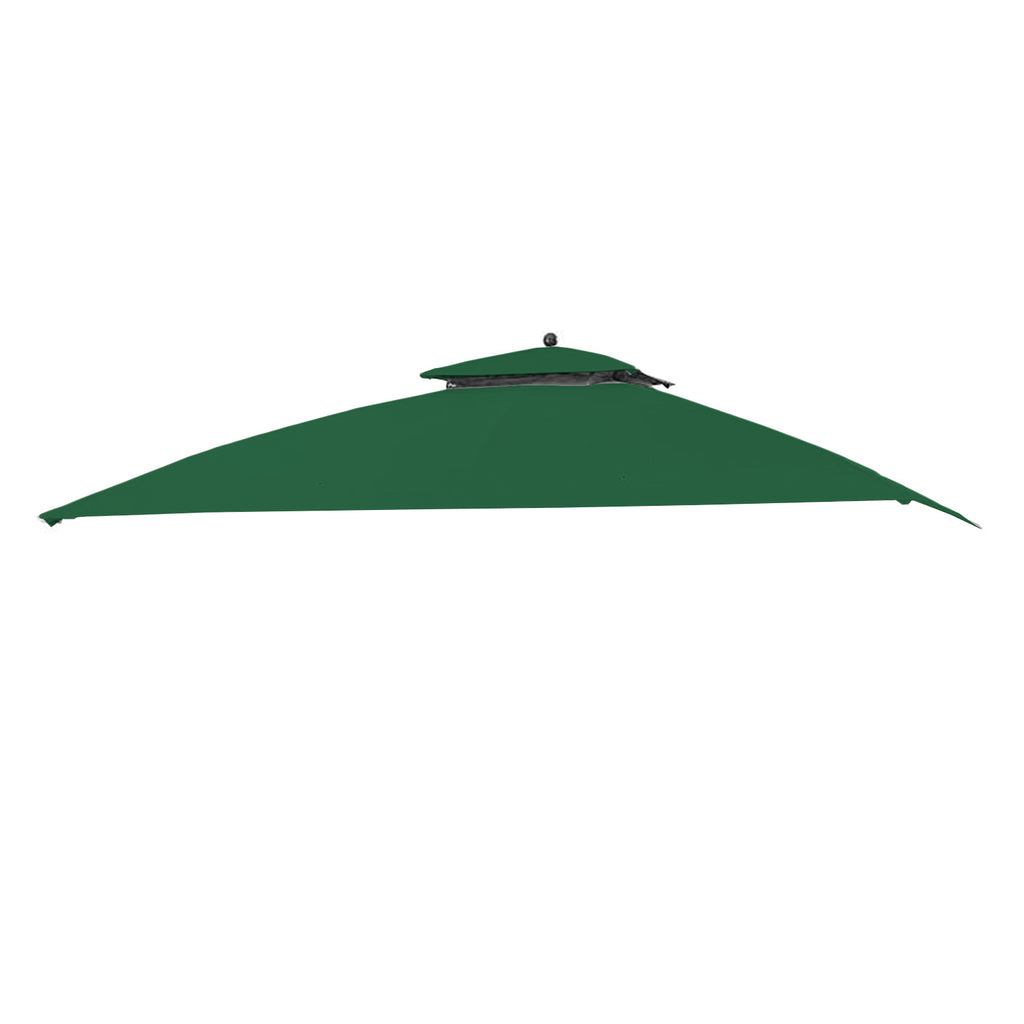

Replacement Canopy for Pinehurst Gazebo

Model: LCM1377G-RS

$195.99 USD

EXCLUSIVE OFFER: Buy 1, Get 1 at 40% Off!
Mix & match any 2 items.

ColorGreen Spruce

Fabric Grade

Standard 350 Riplock 350

Netting and/or privacy curtains in picture not included.

Metal frame not included.

Replacement canopies are not universal, and are not interchangeable. Please compare frame features to your existing frame to ensure that you are selecting the correct replacement part.

Details

IMPORTANT PRODUCT GUIDE - PLEASE READ

Big Lot's sold two versions of this gazebo between 2018-2019. Both gazebos look exactly alike in pictures. However, they are different in size. The canopies are NOT interchangeable.

Big Lot's sold (1) Pinehurst Gazebo (2018 Model L-GZ1188PST); and (2) Oakmont Gazebo (2019 Model L-GZ1188PST-A, A101001700).

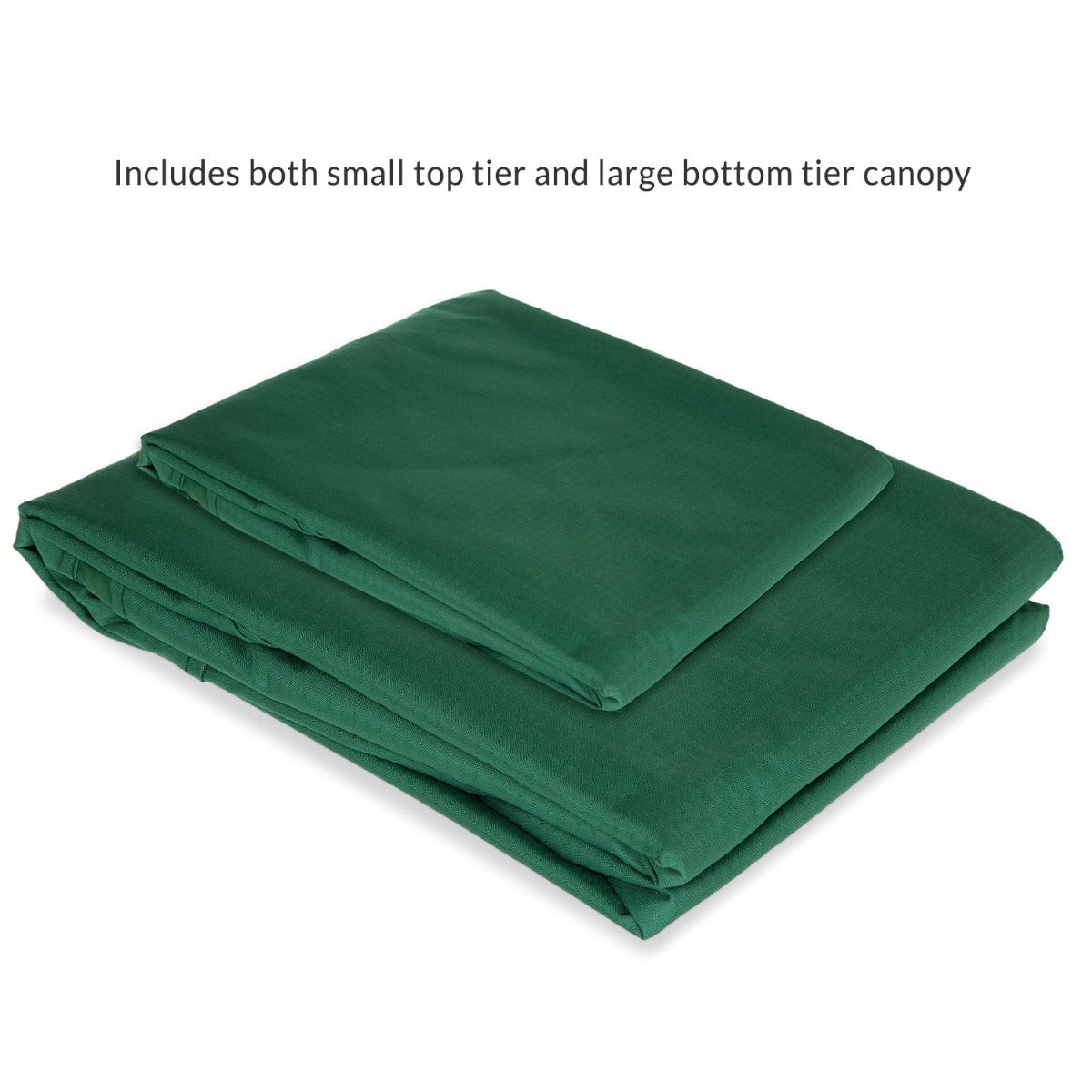

Our Pinehurst replacement canopy measures: Small Top Tier: 35.5” x 42.5” Large Bottom Tier: 128” x 153”. We STRONGLY recommend you measure your frame to save time and money on your purchase. If your bottom tier frame is bigger than these bottom tier measurements, this canopy will NOT FIT, please consider the Oakmont Gazebo Replacement Canopy!!! If your bottom tier frame is bigger than these bottom tier measurements, this canopy will NOT FIT, please consider the Oakmont Gazebo Replacement Canopy!!!

REPLACEMENT CANOPY FOR PINEHURST GAZEBO
OEM Gazebo Specifications
Gazebo Name	Pinehurst Gazebo
Manufacturer	Wilson & Fisher/Sunjoy
Manufacturer's Model Number	L-GZ1188PST
Retailer/Store SKU	Big Lots 810362040
Approximate Frame Size	10' x 12'

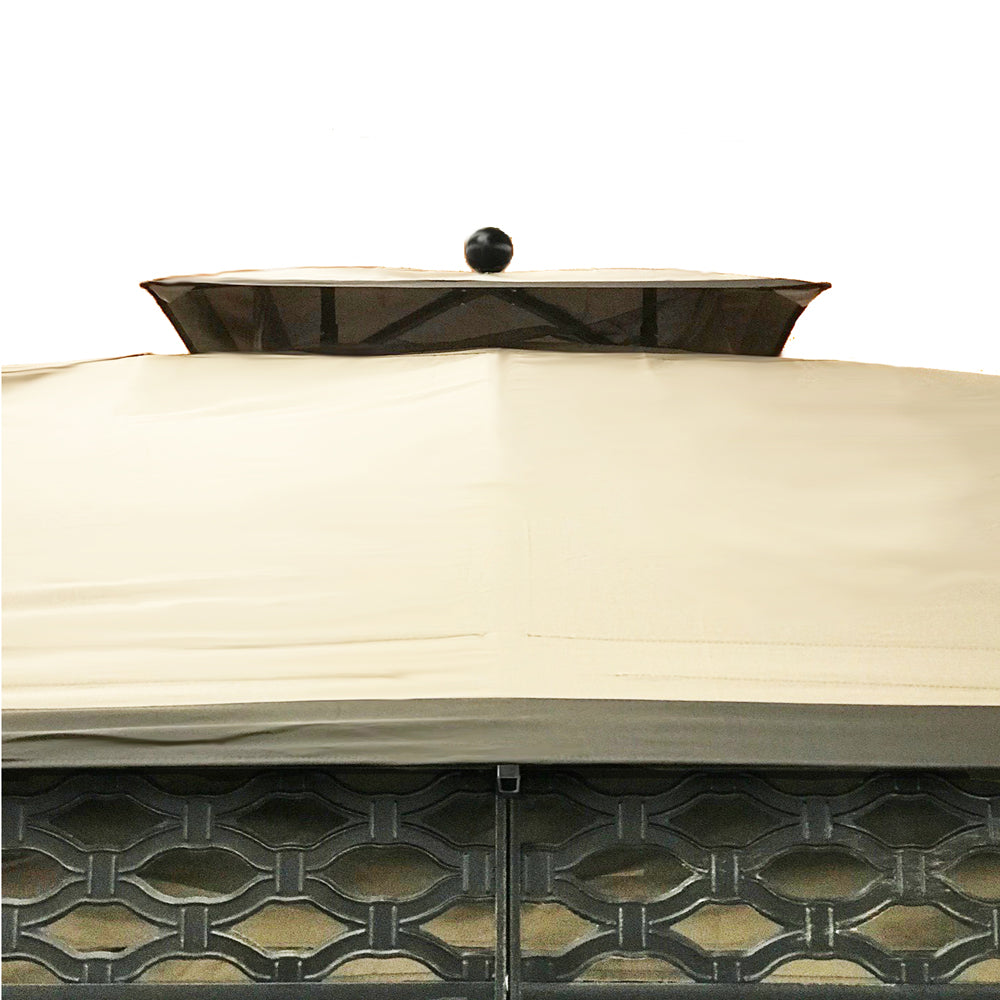

Roof Type	Two-Tiered
Overhang Style	Corner Pocket

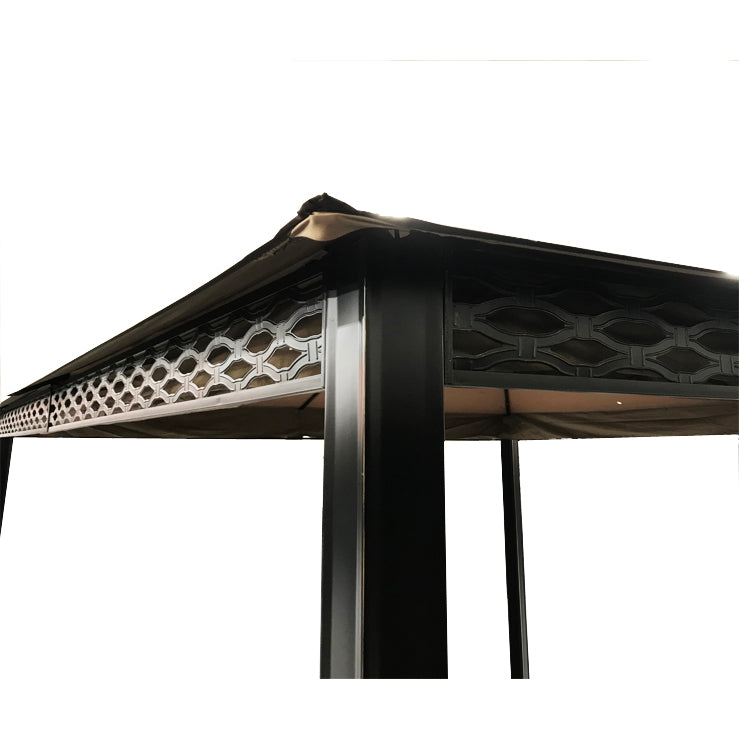

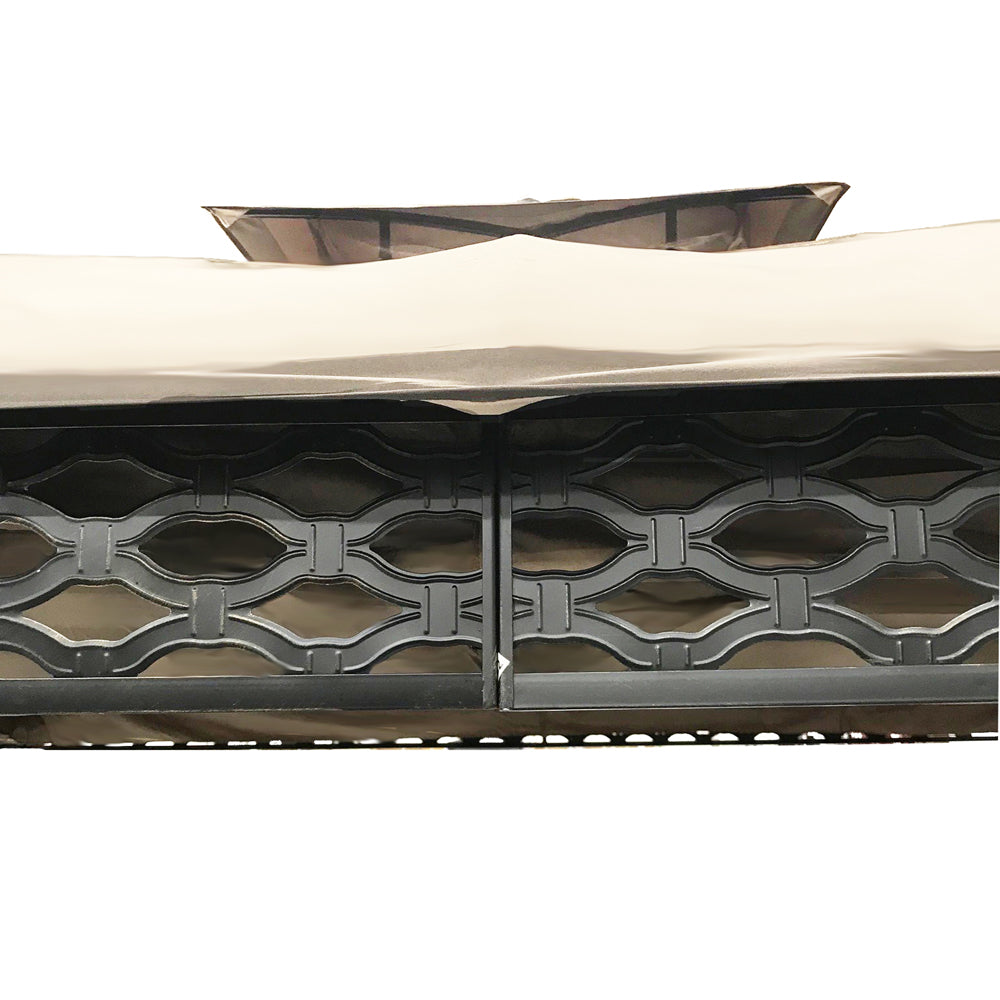

Signature Indicators of Gazebo	Wicker frame body
Garden Winds Replacement Canopy Specifications
Fabric Grades	350 Denier Polyester 350 Denier Polyester with RipLock Technology
Canopy Colors, Stripes and Patterns	Beige Whisper (different from original) Cinnabar Green Spruce Nutmeg Slate Gray True Navy Americana Camo Green Camo Sand Damask Beige Midnight Trellis Palm Stripe Canyon Stripe Stone
Attachment Type	Velcro straps
Fire Resistance	CPAI-84 US Standard
Sun	Treated for protection against UV
Moisture	Water Resistant
Box Content	Replacement canopy
Country of Origin	China

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including benzene, antimony trioxide, and di(2-ethylhexyl) phthalate("DEHP"), which are known to the State of California to cause cancer, developmental or male reproductive toxicity. For more information, go to www.P65Warnings.ca.gov.

Warranty

Garden Winds One Year Limited Performance Warranty

SHOP WITH CONFIDENCE! Garden Winds stands by its canopies and we want you to be happy with your purchase. If, within 6 months of purchase, you experience damage to the canopy* due to a manufacturer defect**, we will send you a ONE-TIME replacement. If you experience damage within 6 to 12 months, a 50% credit will be applied toward the purchase of a NEW canopy (must be the same model). Just send a photo of the damaged canopy along with a full frame photo of your structure. It’s that Easy!

Time from Date of Purchase: Within 6 months
Warranty Offer: One-time replacement canopy

Time from Date of Purchase: Within 6 to 12 months
Warranty Offer: 50% credit towards purchase of new canopy (same model)

Please note: Acceptance of the one-time replacement canopy or discounted canopy completes your warranty. The one-time replacement canopy or discounted canopy will not come with a warranty.

*Your canopy is guaranteed to fit provided your original model number from your gazebo matches what is listed on our website. Our universal canopies are not guaranteed to be an exact fit to your gazebo.

** Manufacturer's defects includes, but are not limited to:

Stitching coming undone
Elastic coming undone
Missing canopy hooks
Velcro straps tearing away from canopy fabric
Grommet rings popping off or are bent
Ripped netting, etc.
Damage upon receipt

The Garden Winds Limited One Year Performance Warranty DOES NOT cover:

Natural occurrences or weather conditions, such as:

Blizzards
Hurricanes
Snowstorms
Tornadoes
Hailstorms
Heavy winds
Heavy rains
Falling tree branches or limbs
Damage caused by persons or animals.
Modifications to the fabric itself, i.e. addition of grommet holes or Velcro straps, sewing on decorations, silk screening, etc.
Universal Replacement Canopies

Because the canopy is made from an outdoor fabric, it will experience deterioration if not cared for properly. Also, varying regions experience different climate conditions that may contribute to a shorter lifespan of the replacement canopy.

If you will experience severe weather, we strongly suggest that you remove the canopy from the frame and store in a cool, dry place until you are ready to enjoy it again. This will help avoid rips and tears, as well as sagging of the canopy due to rain and snow. Leaving the canopy on the frame during heavy rain or snow may cause the gazebo frame to collapse.

Shipping & Returns

Shipping

Ground shipping for all replacement canopies within the contiguous US is FREE. Excludes Hawaii and Alaska.
Shipping on all other item(s) will need to be calculated when a complete shipping address is entered upon completion of checkout process.
ALL in stock orders are processed immediately, and cannot be canceled or changed. Although orders are processed immediately, they ship within 1 to 2 business days.
ALL express shipping orders placed AFTER 1:00pm Pacific Standard Time, Monday - Friday will ship the same business day, excludes holidays or weekends.
ALL Ground, Standard Overnight, 2 Day, and 3 Day orders are delivered Monday-Friday only, no exceptions, and excludes holidays.
ALL in stock orders placed on the weekends and/or holidays will not ship until the next available business day.
Express shipping does not include the day the order is shipped.
Express shipping is not available for all item(s).
Ground shipping takes approximately one (1) to seven (7) business days for delivery depending on where we are shipping to.
Canada shipping is a flat rate fee of $40 USD PER ITEM. This includes Canadian customs clearance brokerage fees, duties, and provincial tax and GFT (harmonized tax, where applicable).
Express shipping NOT available to Canada.
Shipping to Canada takes approximately three (3) to five (5) business days.

Returns and Refunds

No RMA (Return Merchandise Authorization) is needed for returns.
Returns are accepted within 30 days of receipt.
All outbound and return shipping fees are non-refundable, and is the responsibility of the customer.
Packages that are refused or undelivered and returned back to our warehouse are subject to the return shipping fees.
All returned merchandise must be in new, unused, and in resalable condition.
Please note that Garden Winds is not responsible for any return items lost or damaged in transit.
Refunds are issued within three (3) to five (5) business days after the return is received in our warehouse.
If the item(s) is returned damaged, dirty, or used, we may not issue a full merchandise refund.
Once the refund is processed you will receive notification via email.
All Canada refunds on returned merchandise are subject to a $40 (USD) deduction PER item to recover our cost of shipping, duties, and custom brokerage.

Received Defective or Damaged Item(s)

Please do not return the item(s).
Notify us by email within 14 days of receipt of order and email photos of the damaged or defective item(s) to customerservice@gardenwinds.com and reference your order number in the email. We will address your issue via email within 24 to 48 business hours.

For additional information, please view our FAQs and/or Shipping/Returns page links.

Installation Instructions

Replacement Canopy Installation Instructions

Safety First: WARNING!!! This process requires a person to use a ladder to reach the top of the gazebo. It is important that the ladder that you use be stable and safe. It is important that a second person be present in the event you need help. Safety should be your number one priority to prevent falling during installation. If you do not feel comfortable removing or installing the canopy, please seek a professional for help.

Remove Your Old Canopy First

Ladder - You will need a stable ladder that will allow you to safely reach the top of the gazebo.
Loosen Bottom Tier Canopy – Remove the roof bars from the corner pockets. Start with any corner pocket. Pull the corner of the canopy away from the center of the gazebo. This will allow you remove the end of the metal roof bar from the corner pocket. Repeat this for all four corner pockets of the bottom tier canopy. Next, remove the ends of the roof bars from the four side pockets. The side pockets are located midway between any two corner pockets. By now, the side pockets should easily pull away from the metal roof bars. Unfasten all Velcro straps. Velcro straps are usually located on the seams of the canopy. With the bottom tier canopy loosened, push the fabric of the bottom tier towards the center of the roof, and let the canopy sit there on the frame for now. Now it’s time to remove the top tier canopy.
Remove the Top Tier Canopy - Start by removing the roof bars from the corner pockets. Do this by pulling the corner pockets away from the center of the gazebo. Repeat this for all four corners. You should now be able to completely remove the top tier canopy from your gazebo.

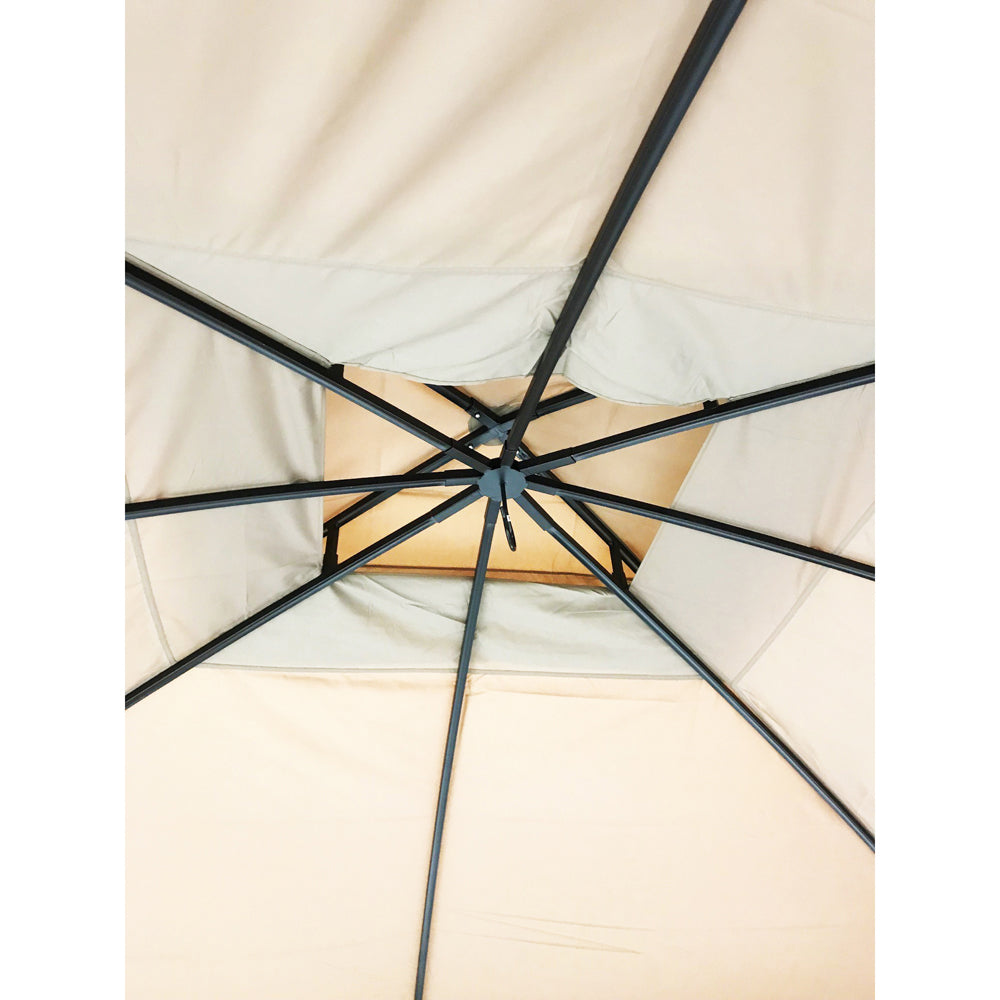

Remove the Bottom Tier Canopy – Remove the bottom tier canopy from the gazebo by looping its center square hole through the top tier frame. The top tier frame has four prongs, each pointing towards one corner of the gazebo. This process will require you to loop the center hole of the bottom canopy through one prong at a time. The first prong is always the most difficult. The process gets easier with each prong of top tier. If the center hole of the canopy is too tight to fit through the prongs, you may need to temporarily loosen the prongs of the top tier from the hub. Once done, you can completely remove the canopy from the gazebo.

Installing New Canopy

Ladder - You will need a stable ladder that will allow you to safely reach the top of the gazebo.
Partially Install Bottom Tier Canopy – The bottom tier canopy should be installed first. Do this by looping the center square hole of the bottom canopy through the top tier frame. The top tier frame has four prongs. Loop the center hole of the bottom canopy through each prong, one prong at a time. Do this for all four prongs. If the center hole of the canopy is too tight to fit through the prongs, you may need to temporarily loosen the prongs from the hub. After you loop the bottom tier through, you should tighten any of the prongs that you may have loosened earlier. Once this is done, let the bottom tier canopy rest on the roof structure. Do not fully install the bottom tier canopy yet, you still need access to the top of the gazebo!
Install the Top Tier Canopy – Rest the top tier canopy on the top tier frame. Pull each corner of the top tier towards the end of the prongs. Insert ends of prongs into the corner pockets, one prong at a time. You will need to pull a little harder on the last corner pocket to complete the installation.
Fully Install Bottom Tier Canopy - Begin by pulling the corners of the canopy towards the corners of the gazebo frame. Fasten the bottom tier tightly to the frame by inserting the ends of the corner roof bars into the corner pockets. Do this for all four corner pockets. Please note that this is a rectangular gazebo. Make sure you align the short side of the canopy with the short side of the gazebo. Likewise, align the long side of the canopy with the long side of the gazebo. You will need to pull harder on the last corner pocket, as there is less slack available. Next, insert the side roof bars into the side pockets. The side pockets are located midway between any two corner pocket. Do this for all four side pockets. Then fasten available Velcro straps to the roof bars.
You’re finished! Enjoy!!!

Copyrighted – Garden Winds

Send the Canopy Experts a Photo

Canopy tops are not interchangeable. Frames might look the same, but they are all different. Let our Canopy Experts eliminate the guesswork! A photo of your frame will allow us to ID the correct fitting canopy.

EMAIL: CUSTOMERSERVICE@GARDENWINDS.COM TEXT: (707) 800-4992
